YUCHAI / MINI EXCAVATOR
YuchaiU27Mini excavator
More room to work. More ways to configure.

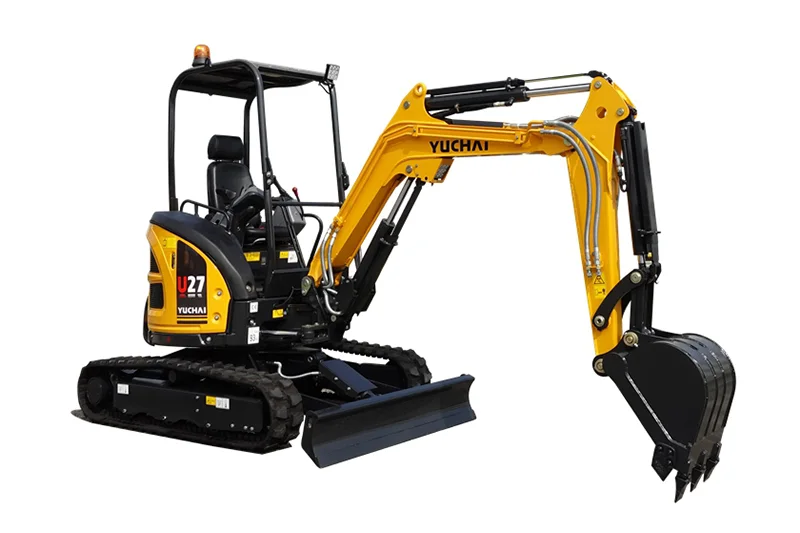

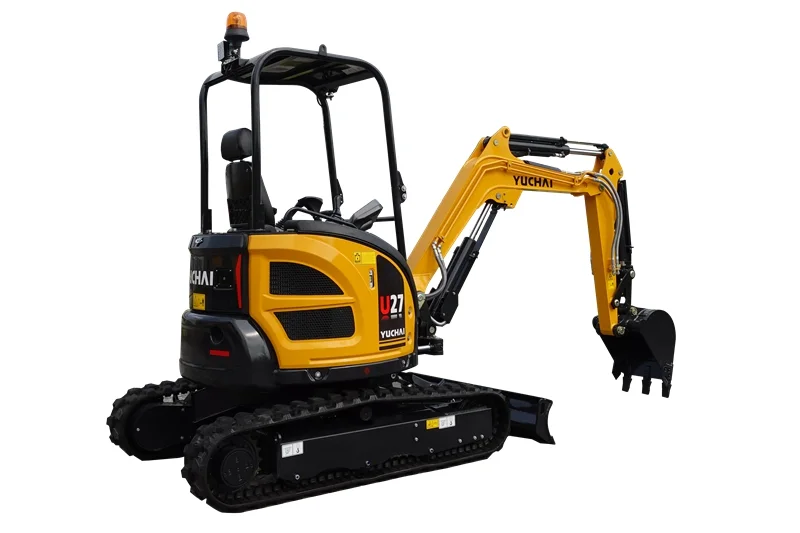

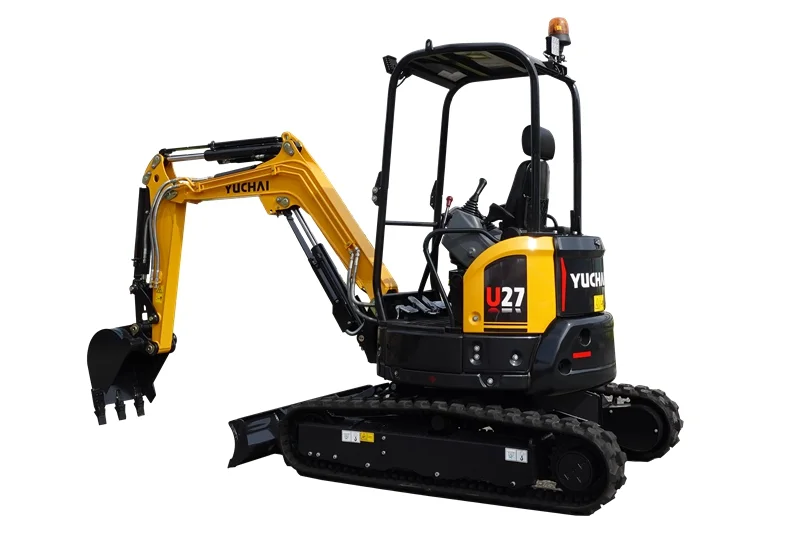

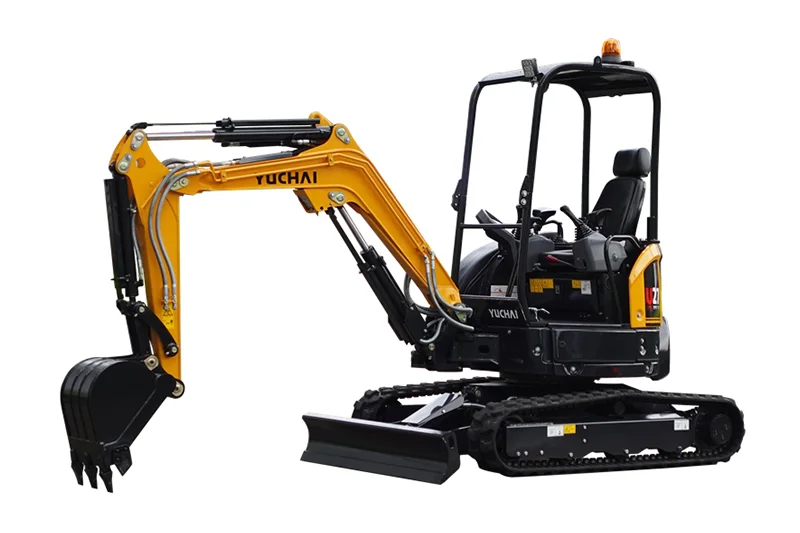

The U27 pairs a Yanmar engine with canopy and cabin configurations. Standard and longer arm specifications are available to compare.
THE DETAILS
U27 specifications.
Manufacturer metric specifications. Where two arm values are listed, they refer to standard / longer arm. Engine and other configurations vary; confirm the configuration for your order with our team.
Basic parameters
| Machine weight | 2600kg (Canopy)/2740kg (Cabin) |
|---|---|
| Bucket capacity | 0.09 m³ |
| Width of bucket | 510 mm |
Performance parameters
| Engine model | Yanmar 3TNV80F |
|---|---|
| Emission Standard | EuroV / EPA Tier 4F |
| Engine power | 15.2kW/2500rpm |
| Max. Gradeability | 30° |
| Max. digging force of arm | 14.4 kN |
| Max. digging force of bucket | 23.1 kN |
| Traveling speed | 4.2/2.3 km / h |
| Max. hauling force | 26 kN |
| Slewing speed of platform | 10~12 rpm |
Operating parameters
| Max. digging height | 4170mm / 4260mm |
|---|---|
| Max. digging depth | 2540mm / 2680mm |
| Max. digging radius | 4520mm / 4660mm |
| Max. digging radius on ground level | 4400mm / 4540mm |
| Max. dumping height | 2780mm / 2870mm |
| Min. slewing radius | 1950mm / 1990mm |
| Max. vertical digging depth | 2240mm / 2260mm |
Transportation dimensions
| Overall length(standard /longer) | 4110mm / 4120mm |
|---|---|
| Overall width | 1500 mm |
| Overall height | 2490mm(Canopy) / 2530 mm (Cabin) |
Other parameters
| Width of undercarriage | 1500 mm |
|---|---|
| Length of track | 2040 mm |
| Width of track | 250 mm |
| Minimum ground clearance | 320 mm |
| Height between platform and ground | 525 mm |
| Platform tail turning radius | 750 mm |
| Length to center of rollers | 1590 mm |
| Fuel tank capacity | 30 L |
| Hydraulic oil tank capacity | 25L |
| Track gauge | 1250 mm |
| Working Pressure | 24Mpa |
| Flow rate | 61.6L/Min |
| AUX1 Pressure/ Flow rate | 21 Mpa| 18/10 L/Min |
| AUX2 Pressure/ Flow rate | 21 Mpa| 36 L/Min |
| Arm length (standard /longer) | 1150 mm/1300 mm |
| Boom length | 2020 mm |
| Steering head angle | 47°(L)/74°(R) |
Source: Yuchai U27 manufacturer product page ↗. Specifications may change. Photos illustrate manufacturer configurations and may show optional equipment. Brochures may describe different configurations or revisions.
