YUCHAI / MINI EXCAVATOR

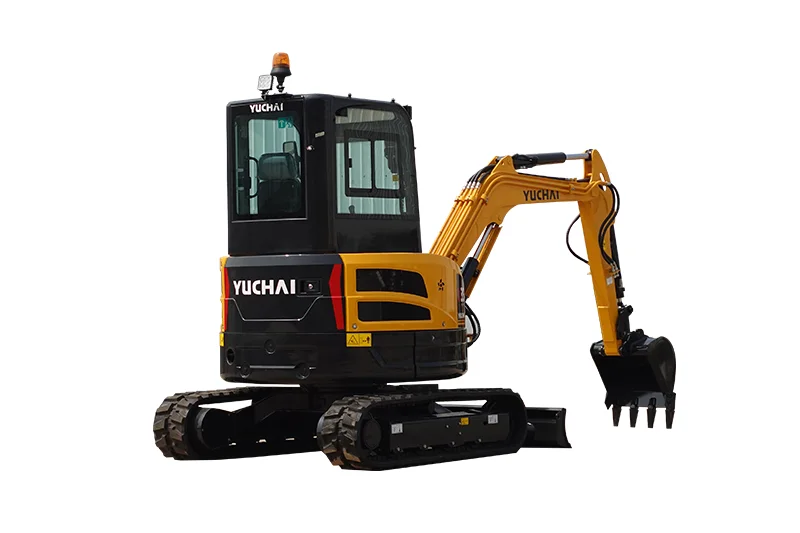

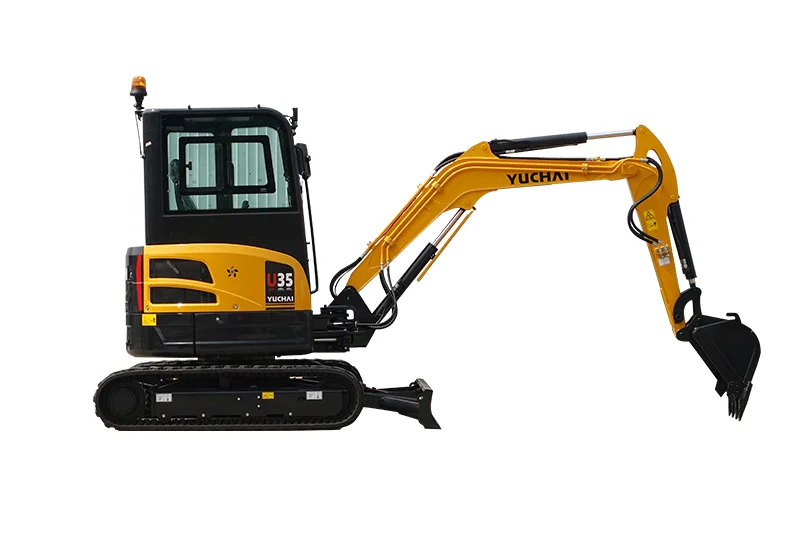

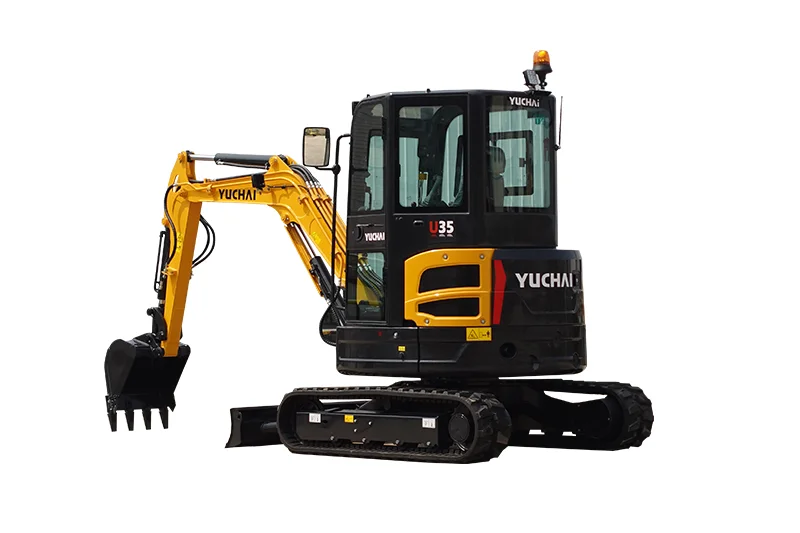

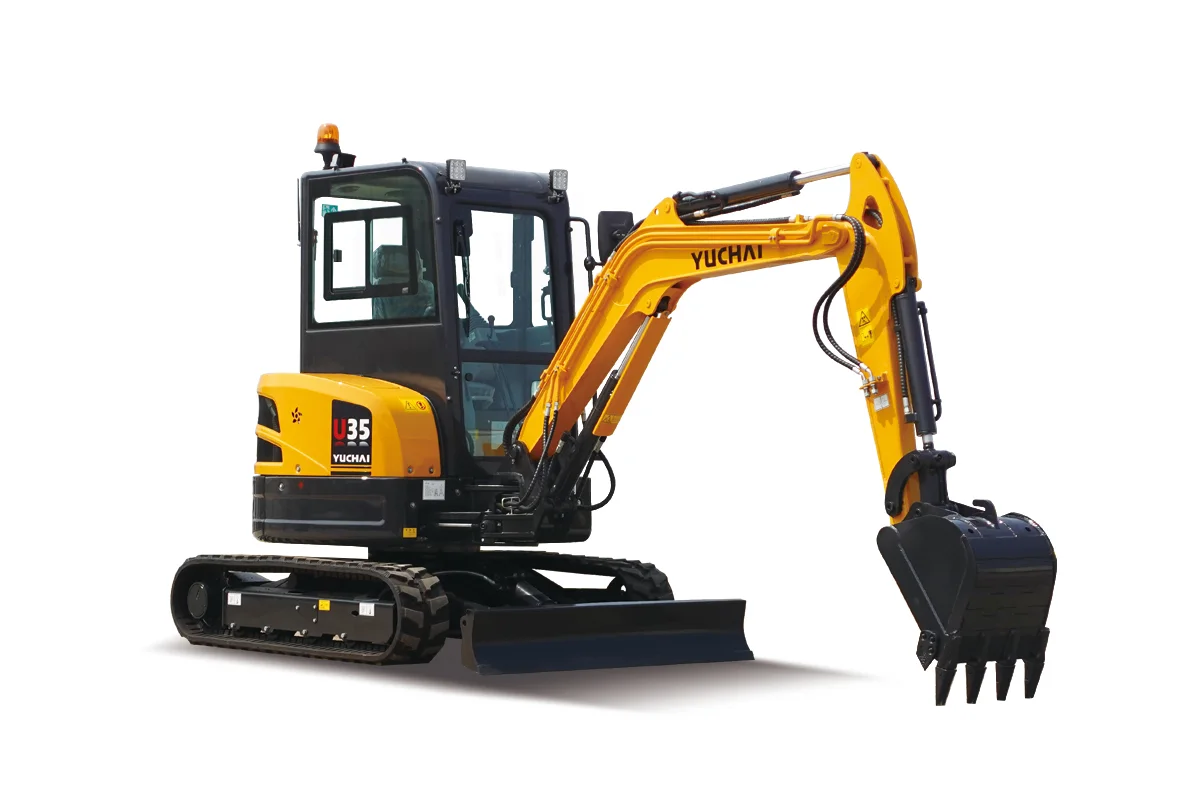

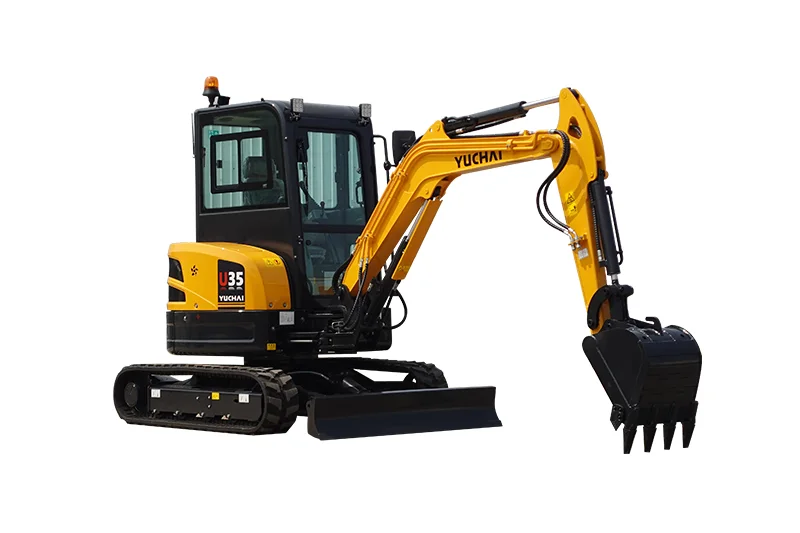

YuchaiU35Mini excavator
Step up your compact equipment lineup.
Discover the U35 with a 0.12 m³ bucket and 1,800 mm overall width. Compare the manufacturer’s engine and arm configurations below.
THE DETAILS
U35 specifications.
Manufacturer metric specifications. Where two arm values are listed, they refer to standard / longer arm. Engine and other configurations vary; confirm the configuration for your order with our team.
Basic parameters
| Machine weight | 3860kg |
|---|---|
| Bucket capacity | 0.12m3 |
| Width of bucket | 550mm |
Performance parameters

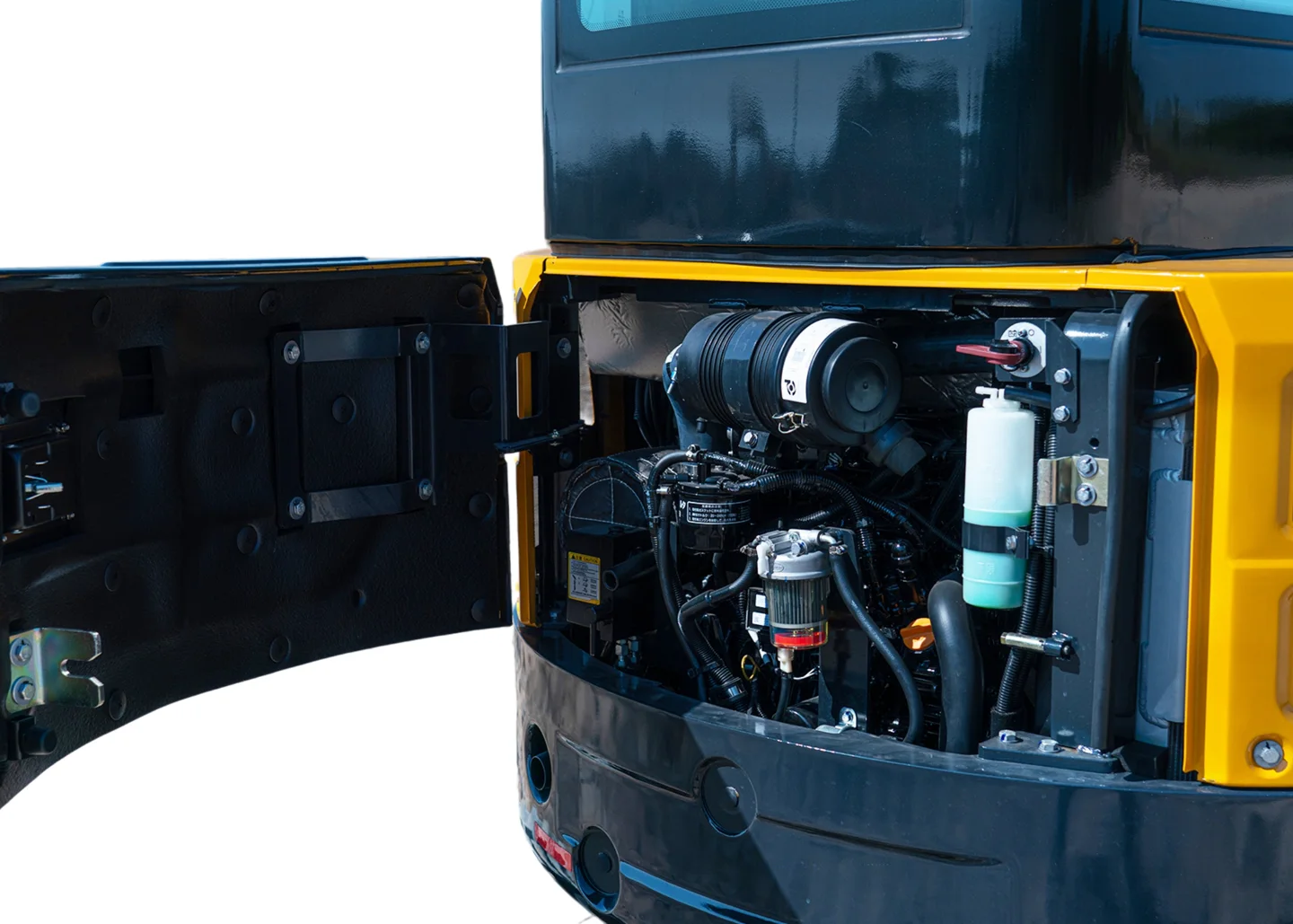

| Engine model | Yanmar 3TNV88 | Yanmar 3TNV88F |
|---|---|
| Emission Standard | CN III | EuroV / EPA Tier 4F |
| Engine power | 20.4kW/2200rpm | 18.2kW/2200rpm |
| Max. Gradeability | 35 ° |
| Max. digging force of arm | 25.78 kN |
| Max. digging force of bucket | 32.67 kN |
| Traveling speed | 3.1/4.8 km/h |
| Max. hauling force | 29 kN |
| Slewing speed of platform | 11~13 rpm |
Operating parameters
| Max. digging height | 5156mm / 5273mm |
|---|---|
| Max. digging depth | 3170mm / 3398mm |
| Max. digging radius | 5557mm / 5703mm |
| Max. digging radius on ground level | 5438mm / 5584mm |
| Max. dumping height | 3588mm/3698mm |
| Min. slewing radius | 2260mm/2287mm |
| Max. vertical digging depth | 2620mm/2792mm/ |
Transportation dimensions
| Overall length | 4853mm/4863mm |
|---|---|
| Overall width | 1800 mm |
| Overall height | 2575 mm |
Other Parameters
| Width of undercarriage | 1800 mm |
|---|---|
| Length of track | 2093 mm |
| Width of track | 300 mm |
| Minimum ground clearance | 347 mm |
| Height between platform and ground | 572 mm |
| Platform tail turning radius | 1014 mm |
| Length to center of rollers | 1620 mm |
| Fuel tank capacity | 52 L |
| Hydraulic oil tank capacity | 40 L |
| Track gauge | 1500 mm |
| Working Pressure | 24 Mpa |
| Flow rate | 90 L/Min |
| AUX1 Pressure/ Flow rate | 28 Mpa/65 L/Min |
| AUX2 Pressure/ Flow rate | 28 Mpa/50 L/Min |

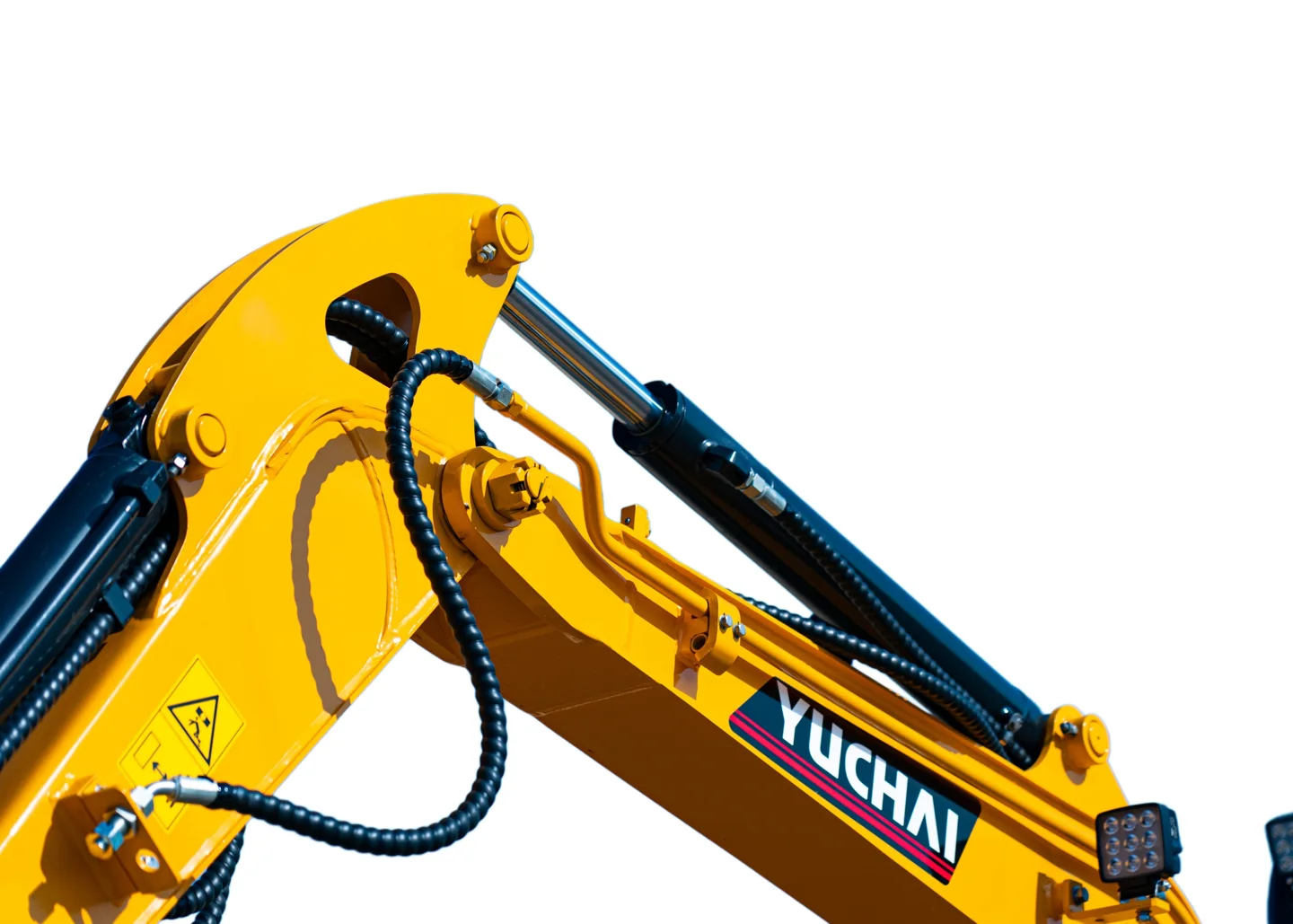

| Arm length | 1400mm /1550 mm |

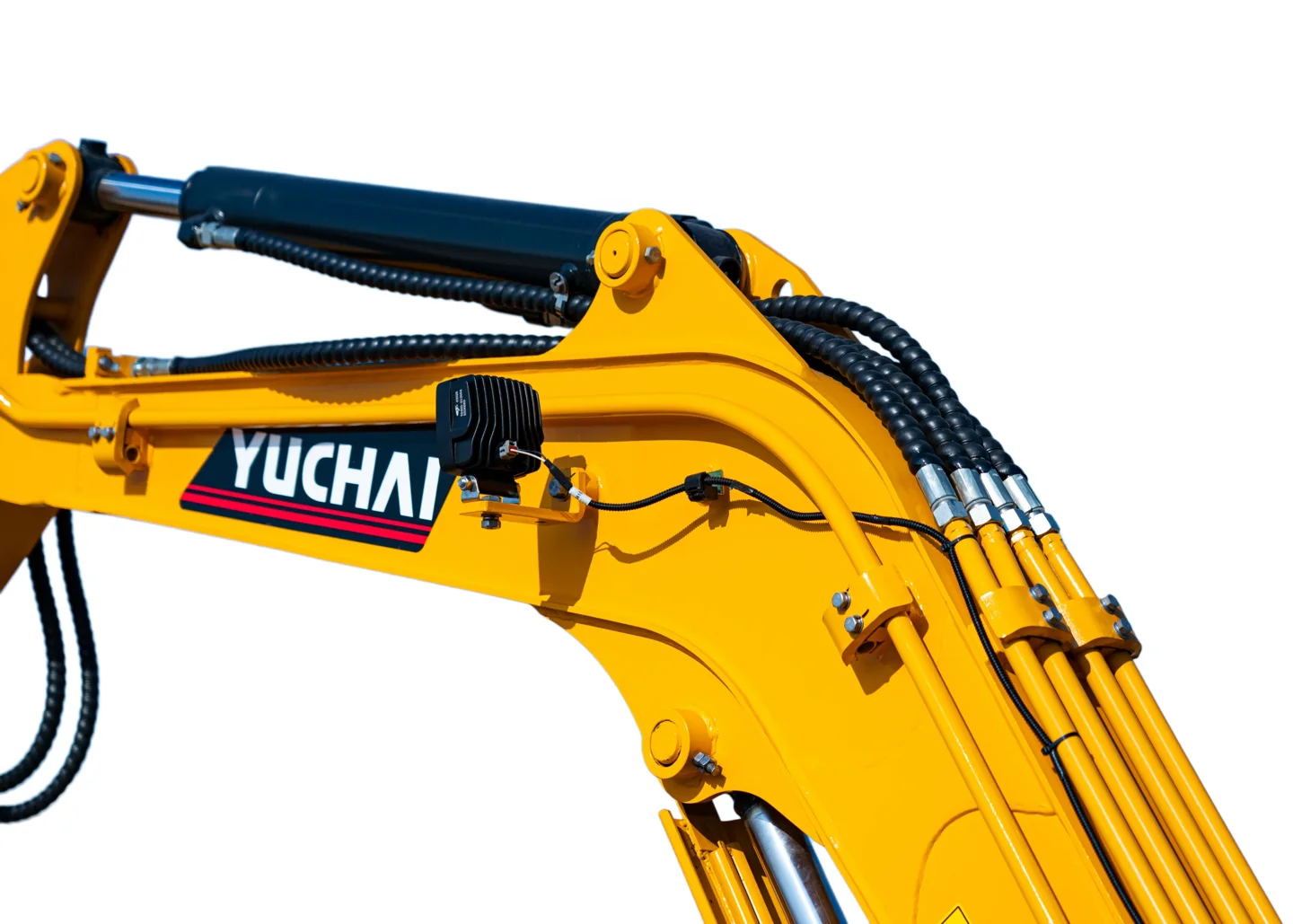

| Boom length | 2500 mm |
| Steering head angle | 65.5°(L)/53.7°(R) |
Source: Yuchai U35 manufacturer product page ↗. Specifications may change. Photos illustrate manufacturer configurations and may show optional equipment. Brochures may describe different configurations or revisions.
